ESSCONEngineers Pvt. Ltd.Japanese Insulation Technology
IceBattery® Insulation Paint

Stay Cool, Save Energy

IceBattery® Insulation is a water-based ceramic and rare earth insulation paint that provides strong insulation performance just by painting it. It reflects, absorbs and blocks thermal energy to create cooler, safer and more comfortable spaces.

Heat shield coating Class A fire safety 15+ year durability
60%Ceramic rare earth beads
40%Acrylic silicon resin & water
300-400µmCoating thickness
15+ YearsOutdoor durability
Product Overview

Transform every surface into a thermal barrier

This coating is built around acrylic silicon resin, water and ceramic rare earth beads. Once applied, it forms a multi-layer ceramic film that helps manage heat transfer, reduce surface temperature, improve comfort and support long-term energy savings.

The product is suitable for exterior and interior use across roofs, walls, warehouses, factories, containers, vehicles, tanks and public facilities where temperature control and coating durability are critical.

Product Visuals

Technical product image cards

Explore clear product visuals that explain coating composition, benefit diagrams and application methods in an easy-to-read format.

Product Identity

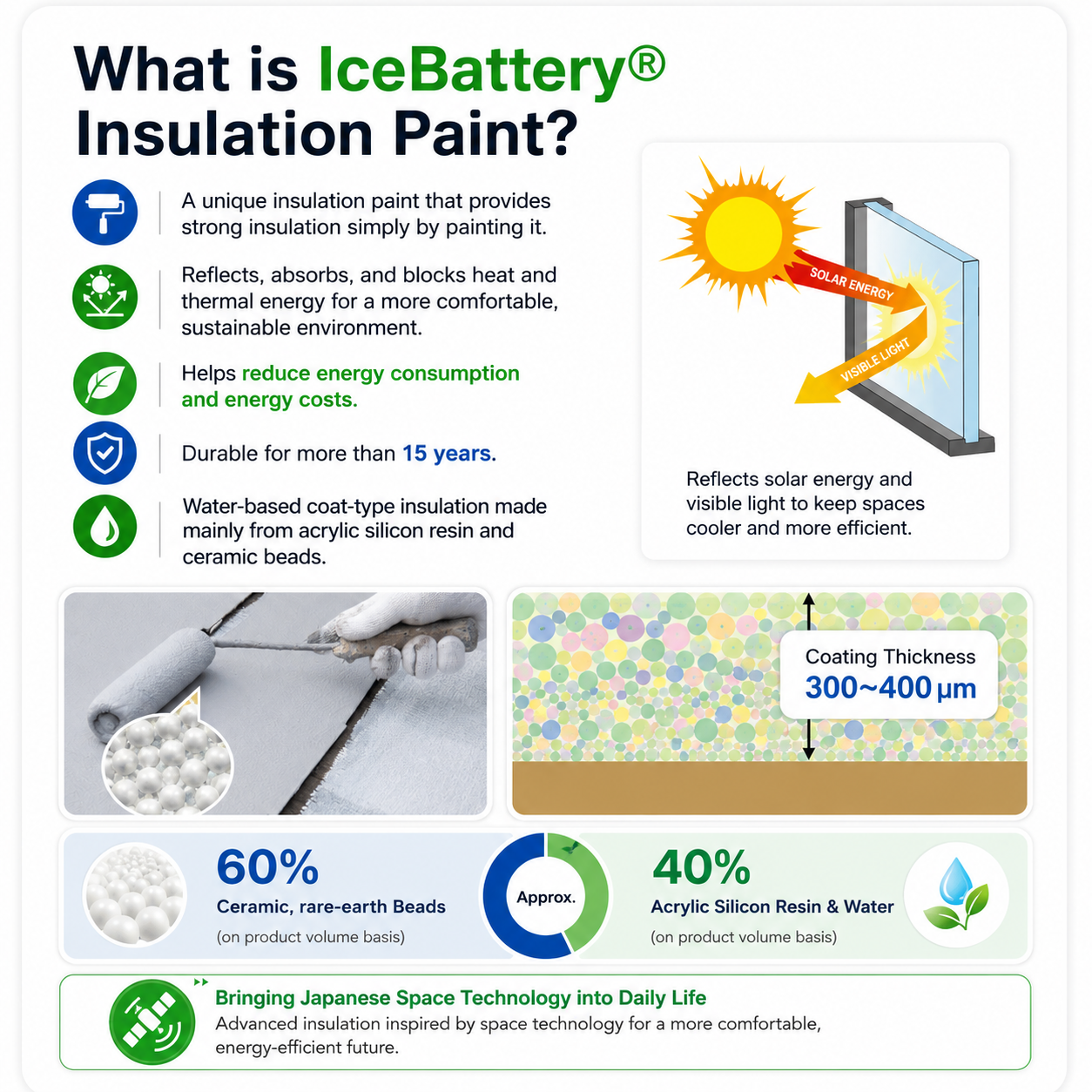

Paint Composition

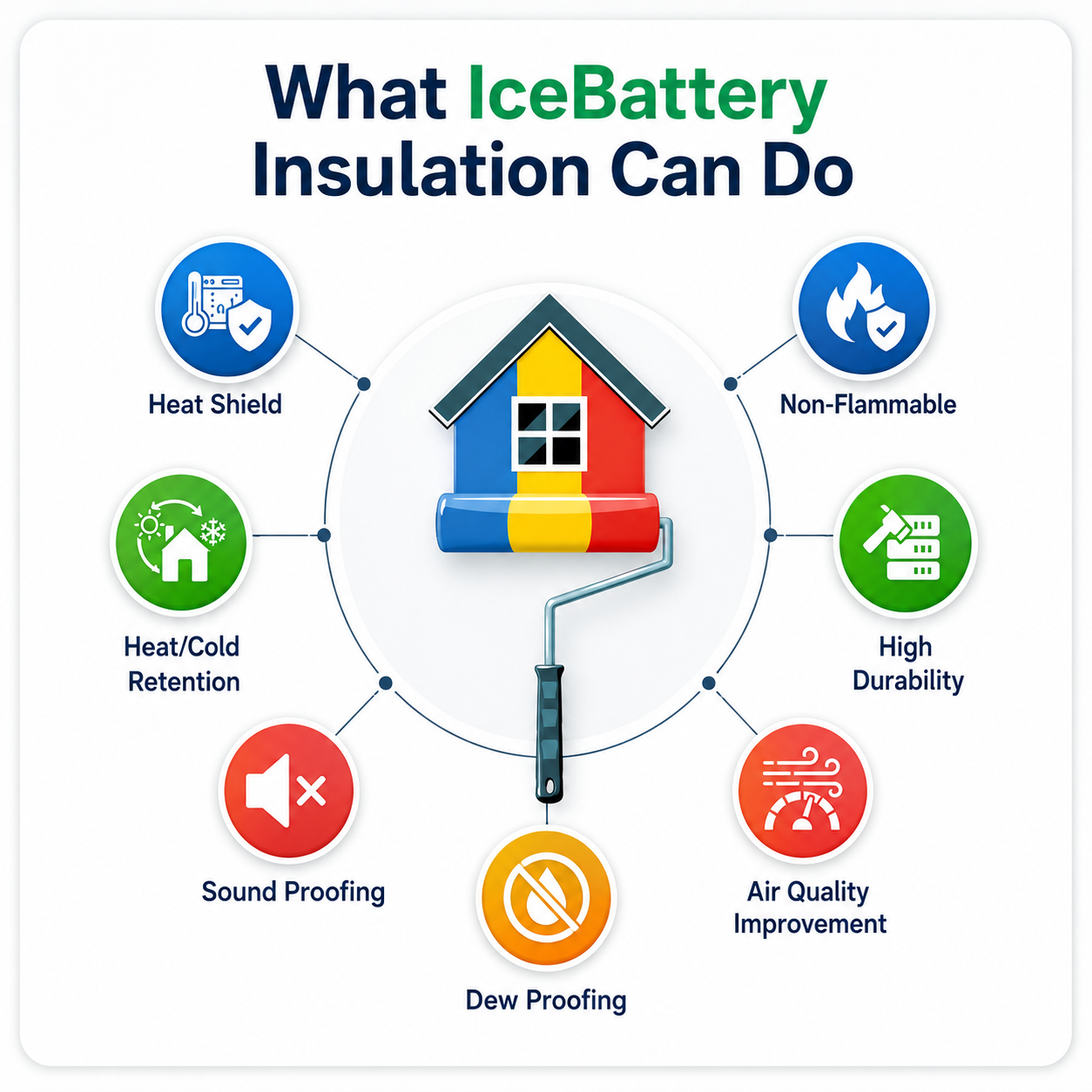

Benefit Diagram
Application Method

Specifications

Technical Product Details

Product NameIceBattery® Insulation Paint
TechnologyCeramic, rare earth insulation coating
OriginMade in Japan
Coating TypeWater-based coat-type insulation paint
Main ResinAcrylic silicon resin
Functional FillersCeramic and rare earth beads
CompositionApprox. 60% ceramic / rare earth beads and 40% acrylic silicon resin & water
Recommended Film Thickness300-400µm
DurabilityOutdoor weather durability for more than 15 years
Fire PerformanceUL723 / ASTM E84 Class A surface burning classification
Painting MethodsRoller, brush, spray and trowel
Key PromiseStay cool, save energy and improve indoor comfort

Capabilities

What IceBattery® Insulation can do

The coating is designed as a high-performance surface solution for thermal, acoustic, moisture and safety improvements.

Heat Shield

Reflects near-infrared rays and radiates heat energy as far-infrared rays to reduce heat penetration into interiors.

Heat / Cold Retention

Helps regulate heat transfer so buildings remain comfortable in both hot and cold weather.

Sound Proofing

Multi-ceramic cluster layers repeatedly refract sound energy inside hollow ceramic beads.

Dew Proofing

Reduces heat transfer and helps prevent moisture particles from adhering to walls and ceilings.

Non-Flammable

Class A certification supports safe use for building and construction applications.

Air Quality Support

Far-infrared activity and zero static electricity support dust and odor reduction on coated surfaces.

Testing Results

Measured performance evidence

Case-based product visuals include factory, car carrier, bus and container tests showing meaningful temperature reductions after coating.

Factory Facility Ceiling

Before / Normal54.8°C
After / Coated44.6°C

Coated ceiling temperature reduction observed in factory testing.

Car Carrier Deck

Before / Normal60.2°C
After / Coated31.8°C

Coated deck surface stayed dramatically cooler than the uncoated area.

Public Transportation Bus

Before / Normal45.0°C
After / Coated38.5°C

Ceiling temperature difference of -6.5°C after IceBattery coating.

Dubai Container Test

Before / Normal>75°C
After / Coated45.9°C

Normal container exceeded the measurable range; IB coating produced more than 29°C difference.

Evidence Gallery

Product diagrams and test visuals

Explore product visuals that explain key mechanisms, safety performance, durability, air quality support and energy-saving results.

Thermal control

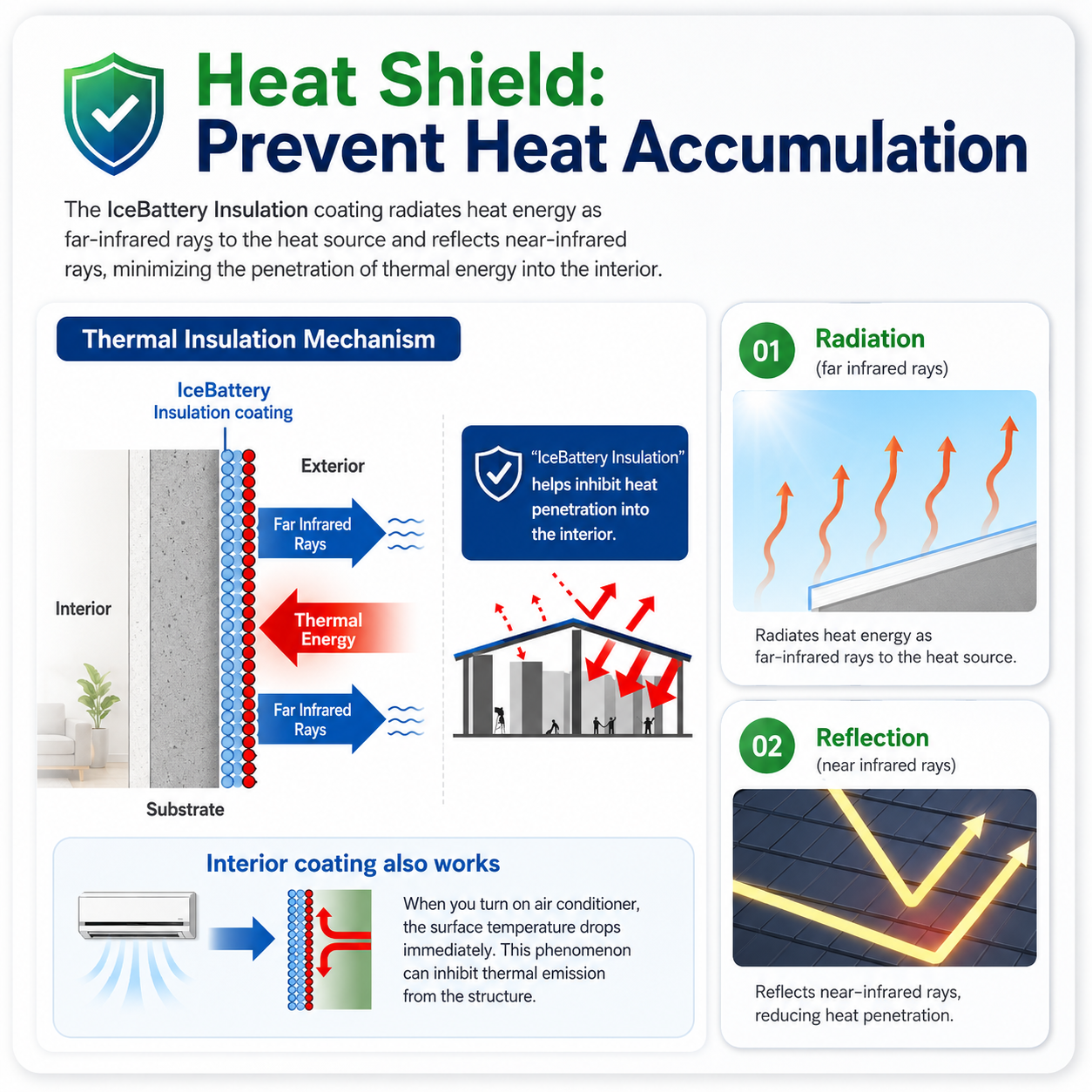

Heat Shield Mechanism

Comfort layer

Sound + Dew Proofing

UL723 / ASTM E84

Class A Fire Safety

Dust + odor control

Air Quality Support

15+ year life

Durability Economics

22.8% yearly

Energy Saving Result

Applications

Suitable for buildings, vehicles and industrial assets

This coating supports broad use cases from homes and apartments to factory roofs, containers, buses, water tanks, hospital roofs and metal roofs.

Houses Apartments Warehouses Factory roofs Metal roofs Containers Trucks Cars Vans Buses Water tanks Hospital roofs

Painting Methods

Applied like a general painting method

IceBattery® Insulation can be applied by roller, brush, spray or trowel. The result is a ceramic coating film that regulates heat transfer and improves indoor comfort.

Surface Preparation

Clean the roof, wall, container or facility surface and prepare it like a general professional painting job.

Apply Coating

Use roller, brush, spray or trowel depending on surface type and site conditions.

Build Ceramic Film

A multi-layer ceramic film forms a heat-shielding, non-flammable and durable insulation surface.

Product Enquiry

Need IceBattery® Insulation product support?

Connect with ESSCON Group for insulation coating selection, technical specifications, project suitability and application guidance.
