Concrete Filled Panel

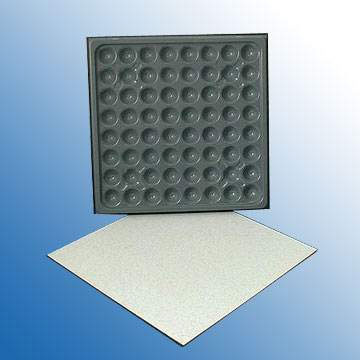

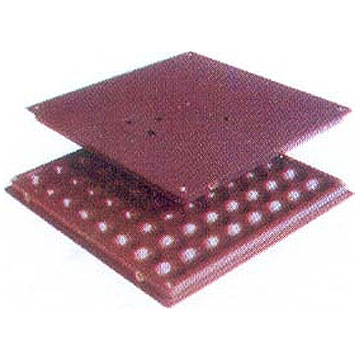

ESSCON concrete filled panel ECP 800 / 1000 / 1200 are made from steel. The bottom of the panel is embossed in 64 hemisphere shape of 60 mm diameter. The top steel is plain and resistant welded at various locations after the top and bottom steel have been de-greased and phosphated.

Epoxy coated surfaceAntistatic finishHeavy duty options

600 × 600Panel Size

64Hemisphere Bowls

12–18 KgPanel Weight

ECP800 / 1000 / 1200

Product Overview

Engineered for durable raised flooring performance

The above hollow panel has an infill of lightweight cementitious materials. The entire panel is coated with epoxy coating on the exposed surface. Panels remain flat and stable, unaffected by humidity or fluctuation in temperature throughout their normal working life.

They provide impact resistance, minimal deflection, corrosion resistance and are non-combustible to aid spread of flame. Panels are well insulated against heat and noise transfer.

Specifications

Technical Product Details

CategoryConcrete Field

Panel Size600 × 600 mm²

Hemispherical Bowl64 Nos.

Size Diameter60 mm

Core MaterialLight Weight Cementitious

Top / Bottom PlateM. S Sheet

CoatingEpoxy Coating

Top FinishAntistatic Laminate / PVC

Thickness32 - 38 mm

Flange12 - 15 mm

Weight12 - 18 Kg

ApplicationECP - 800 General Purpose, ECP - 1000 Heavy Duty, ECP - 1200 Special Purpose

Side BandPolymer Band

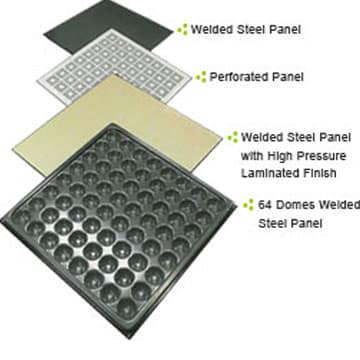

Concrete filled panel layer specification

Load Specifications

Panel Load Performance

Load data for ECP 800, ECP 1000 and ECP 1200 panel types in a clean responsive format for desktop, tablet and mobile devices.

Panel Type	Point Load	UDL (Kg/M²)	Impact Load	Rolling Load	Ultimate Load
ECP 800	3.6 KN	1080	46 KN	2.7 KN	> 18 KN
ECP 1000	4.5 KN	1350	56 KN	3.6 KN	> 20 KN
ECP 1200	5.6 KN	1680	66 KN	5.6 KN	> 22 KN

Product Benefits

Reliable Raised Floor Panel Performance

The grid formed by the stringers, which are bolted into the pedestals, fully interchange with each other within the range of a specific layout.

Excellent impact resistance and stable panel performance

Minimal deflection with strong corrosion resistance properties

Non-combustible support to control spread of flame

Insulated against heat and noise transfer

Fully interchangeable panels within a specific layout

Factory-made antistatic laminate / PVC top finish

Panel Size

600 × 600 mm² standard panel size for professional layouts.

Top Finish

Factory finished antistatic laminate / PVC surface.

Panel Weight

Approximate weight range from 12 to 18 Kg.
