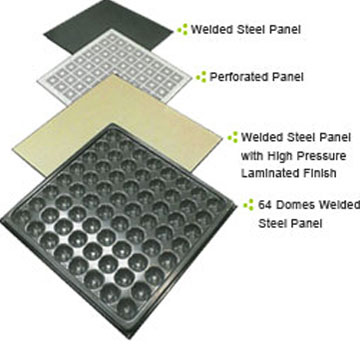

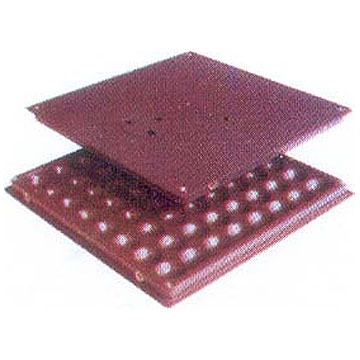

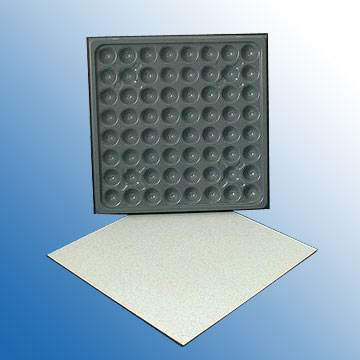

ESSCON concrete filled panel(ECP) 800/1000/1200 are made from steel. The bottom of the panel is embossed in 64 hemisphere shape of 60 mm diameter. The top steel is plain and resistant welded at various locations, after the top and the bottom steel have been de-greased and phosphated. The above hollow panel has an in-fill of light weight cementitious materials. The entire panel is coated with epoxy coating on the exposed surface. Panels remain flat and stable, unaffected by humidity or fluctuation in the temperature throughout its normal working life. They provide for impact resistance top surfaces, minimal deflection, corrosion resistance properties and are non combustible or aid to spread of flame. Panels are well insulated against heat and noise transfer. They are 600 X 600 mm and have a flange of 12-15 mm on all four sides (for resting on strings) fully interchangeable with each other within the range of a specific layout. They rest on the grid formed by the stringers, which are bolted into the pedestals. They are factor made, anti static laminate/ PVC on the top and polymer band/ trimming along the edges.

SPECIFICATIONS
Category		Concrete Field
Panel Size		600 * 600mm2
Hemispherical Bowl		64 Nos.
Size Diameter		60mm
Core Material		Light Weight Cementitious
Top/Bottom Plate		M . S Sheet
Coating		Epoxy coating
Top finish		Antistatic Laminate / PVC
Thickness		32 - 38 mm
Flange		12 - 15 mm
Weight		12 - 18 Kg
Application ECP - 800 ECP - 1000 ECP - 1200		General Purpose Heavy Duty Special Purpose
Side Band		Polymer Band
LOAD SPECIFICATIONS
Panel Type	ECP 800	ECP 1000	ECP 1200
Point Load	3.6 KN	4.5 KN	5.6 KN
UDL(Kg/M2)	1080	1350	1680
Impact Load	46 KN	56 KN	66 KN
Rolling Load	2.7 KN	3.6 KN	5.6 KN
Ultimate Load	> 18 KN	>20 KN	> 22 KN
